Shree Bhagwati Cables manufacturer of “TORREX - wires & cables"

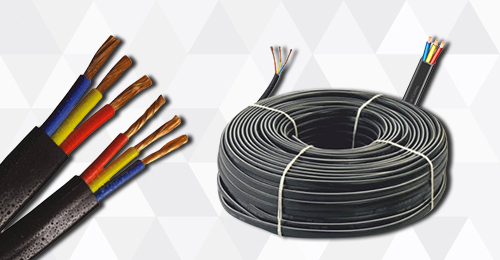

3-Core Flat Submersible Cables

3-Core Flat Submersible Cables

These cables are PVC insulated & sheathed 3-Core Flat Cables that provide electrical connection to submersible pump motors, buried deep into the ground. Due to narrow space available in the deep wells, these cables are flat in shape.
Our cables are ISI marked, conforming to IS: 694/90 and suitable for operation up to & including 1100 volts. We use purity tested high conductivity bright annealed Copper conductor that offer low conductor resistance. Keeping in mind the adverse conditions in which they have to operate, our cables are sheathed with special oil & abrasion resistant PVC to provide higher electrical safety and longer cable life.

LT Power and Control Cable


  • 1.0 Sq. mm. to 50.0 Sq. mm., 3 Core Flat.

General Construction

  • Conductor - High conductivity Annealed Multistrand Copper as per Class 2 of IS:8130/1984.
  • Insulation - PVC Type A as per IS:5831/1984.
  • Cores are laid side by side and are Red, Yellow & Blue in colour as per the colouring scheme of IS:694/90.
  • Outer Sheath - PVC Type ST1 as per IS:8130/1984 .
